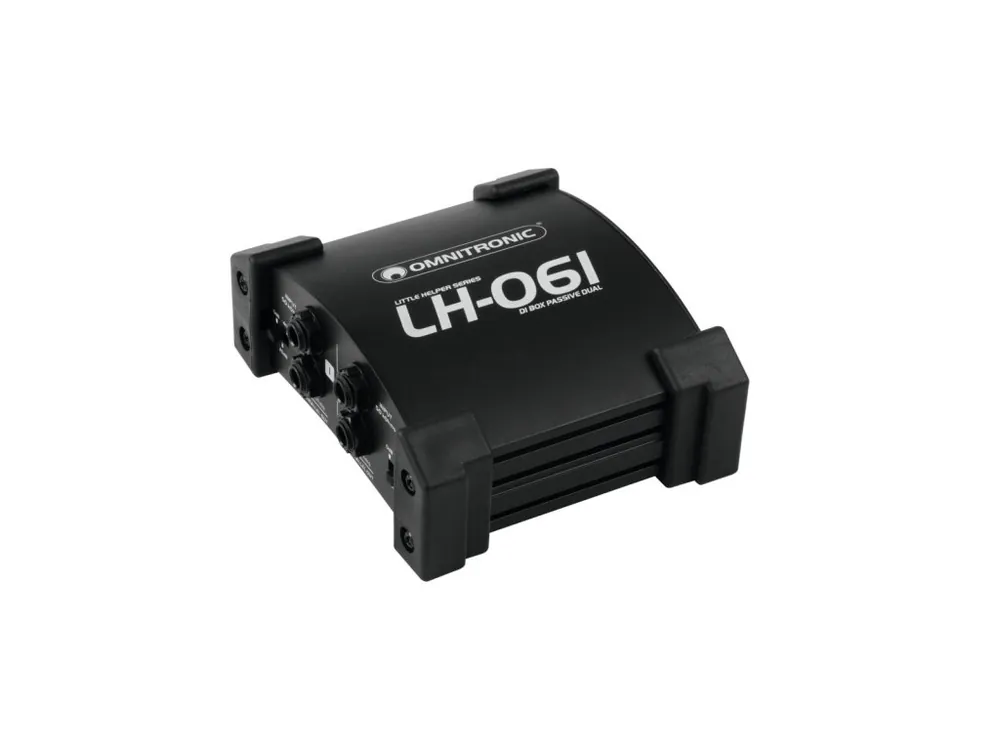

Passive 2-channel DI box with split mode. 2 high-impedance signal inputs via two 6.3 mm jacks. 2 low-impedance XLR outputs. 2 feed-through outputs (6.3 mm jack). Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer. Switchable input attenuation: 0 dB, -20 dB, -40 dB. Ground-lift switch eliminates signal interference and ground loop problems. Modern convex housing design with rubber corners for safe positioning. Stackable. Cables can be routed under the housing.
Frequency range: 15 Hz – 30 kHz
Input impedance: 50 kohms
Output impedance: 600 ohms
Maximum output level: 6 dBu
Dynamic range: >95 dB
Input connectors: 2 x 6.3 mm jack
Output connectors: 2 x XLR2 x 6.3 mm jack (parallel out)
Dimensions: 115 x 133 x 54 mm
Weight: 0.6 kg
Shipping weight: 1.000 kg
